60EBSR | Aero-Motive

Balancer, 60EBSR, load capacity (min/max) 20.5 to 27.3 kg, stroke 1.5 m, with locking, 1301710310

Order No.: 12P6550
EAN: 4099891449742
MPN:
60EBSR
1301710310
Series: EB

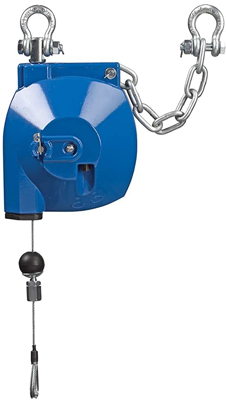

60EBSR Aero-Motive Spring Balancers Image 1
60EBSR Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
1,074.5105 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,074.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,074.5105 €

Balancer, 1301710310, Aero-Motive

Aero-Motive Heavy Industrial Duty EB Balancer with Upper / Lower Bullard Hooks and Upper Shackle Assembly, Weight Range 20.5-27.3 kg (45.0-60.0 lb), 1.50 m (4.90') Travel

EB Serie balancers are devices designed to provide constant tension throughout the specified active cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque build-up from the power spring.

Tools attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity

Applications

  • Portable tools
  • Manufacturing
  • Assembly facilities
  • Workstations
  • Electric Tools
Technical specifications
Filter Property Value
Manual locking Yes
Spring fracture safety device Yes
Product type balancer
Locking with locking
Suspension Rope galvanized
Min Load capacity 20.5 kg
Weight 10 kg
Fall protection Yes
Stroke 1.5 m
Shell Material aluminum
Max Load capacity 27.3 kg
Rope pullout 1.5 m
Rope Diameter 3.18 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 84253900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform not_relevant
