60EBS | Aero-Motive

Balancer, 60EBS, load capacity (min/max) 20.5 to 27.3 kg, stroke 1.5 m, without locking, 1301710309

Order No.: 12P6549
EAN: 4099891449735
MPN:
60EBS
1301710309
Series: EB

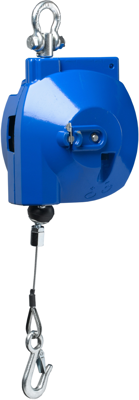

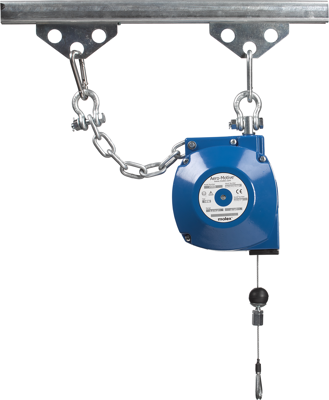

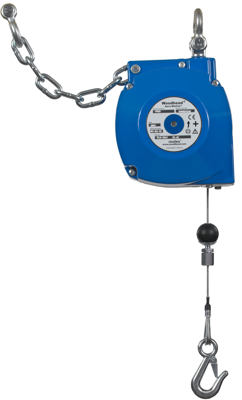

60EBS Aero-Motive Spring Balancers Image 1
60EBS Aero-Motive Spring Balancers Image 2
60EBS Aero-Motive Spring Balancers Image 3
60EBS Aero-Motive Spring Balancers Image 4
60EBS Aero-Motive Spring Balancers Image 5
Image may differ
Unit Price (€ / pc.)
1,043.6181 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,043.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,043.6181 €

Balancer, 1301710309, Aero-Motive

Aero-Motive Heavy Industrial Duty EB Balancer with Upper / Lower Bullard Hooks and Clamps, Short Travel for Cable Assembly and Ratchet Lock, Weight Range 20.5-27.3 kg (45.0-60.0 lb), 1.50 m (4.90') Travel

EB Serie balancers are devices designed to provide constant tension throughout the specified active cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque build-up from the power spring.

Tools attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity

Applications

  • Portable tools
  • Manufacturing
  • Assembly facilities
  • Workstations
  • Electric Tools
Technical specifications
Filter Property Value
Rope pullout 1.5 m
Min Load capacity 20.5 kg
Suspension Rope galvanized
Manual locking Yes
Locking without locking
Product type balancer
Max Load capacity 27.3 kg
Spring fracture safety device Yes
Rope Diameter 3.18 mm
Stroke 1.5 m
Weight 10 kg
Fall protection Yes
Shell Material aluminum
Logistics
Property Value
Country of origin DE
Customs tariff number 84253900
Compliance
Property Value
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
