50EL | Aero-Motive

Balancer, 50EL, load capacity (min/max) 18 to 23 kg, stroke 1.8 m, with locking, 1301720197

Order No.: 12P6595
EAN: 4099891450090
MPN:
50EL
1301720197
Series: EL

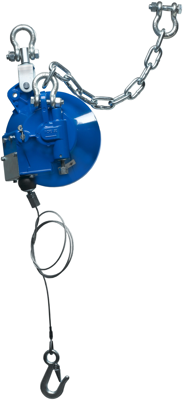

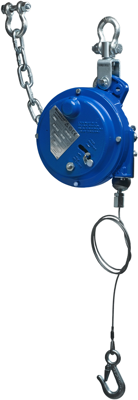

50EL Aero-Motive Spring Balancers Image 1
50EL Aero-Motive Spring Balancers Image 2
50EL Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
1,453.1328 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1,453.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,453.1328 €

Balancer, 1301720197, Aero-Motive

Aero-Motive Heavy Industrial Duty EA Balancer with Ratchet Lock, Weight Range 18.0-23.0 kg (40.0-51.0 lb), 1.80 m (6.0') Travel

EL Serie balancers are devices designed to provide constant cable tension throughout a specified length of cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque buildup from the power spring.

Features

  • Containerized power spring
  • High-pressure Aluminum casted housings
  • Allows for safe handling of power spring
  • Adjustable cable stop

Applications

  • Electric Tools
  • Mechanical Tools
  • Pneumatic Tools
  • Cabling and hoses
Technical specifications
Filter Property Value
Version balancer
Stroke 1.8 m
Rope Diameter 3.18 mm
Weight 9.5 kg
Max Load capacity 23 kg
Min Load capacity 18 kg
Spring fracture safety device Yes
Rope pullout 1.8 m
Manual locking Yes
Fall protection Yes
Suspension Rope galvanized
Locking with locking
Shell Material aluminum
Logistics
Property Value
Country of origin DE
Customs tariff number 84253900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform not_relevant
