25EB | Aero-Motive
Balancer, 25EB, load capacity (min/max) 8.2 to 11.4 kg, stroke 2 m, without locking, 1301710300
Unit Price (€ / pc.)
1,043.6181 € *
Standard delivery time from the manufacturer is: 46 Weeks
Balancer, 1301710300, Aero-Motive

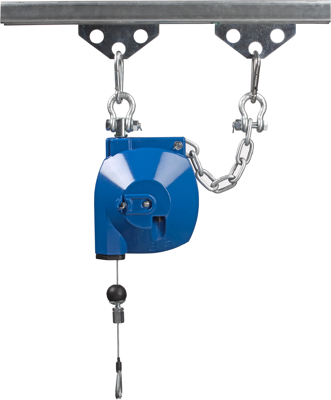

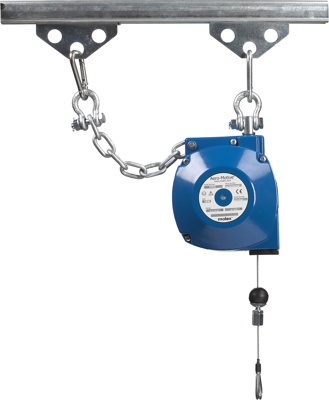

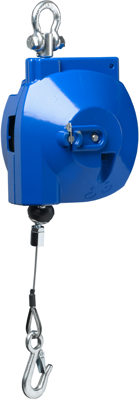

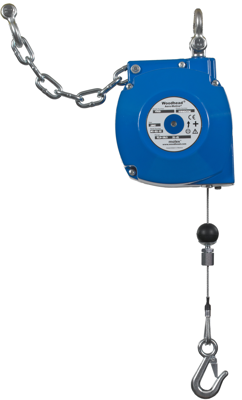

Aero-Motive Heavy Industrial Duty EB Balancer with Upper / Lower Bullard Hooks and Clamps, Weight Range 8.2-11.4 kg (18.0-25.0 lb), 2.0 m (6.60') Travel
EB Serie balancers are devices designed to provide constant tension throughout the specified active cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque build-up from the power spring.
Tools attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity
Applications
- Portable tools
- Manufacturing
- Assembly facilities
- Workstations
- Electric Tools
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fall protection | Yes | |
| Stroke | 2 m | |
| Rope Diameter | 3.18 mm | |
| Product type | balancer | |
| Shell Material | aluminum | |
| Weight | 10 kg | |
| Spring fracture safety device | Yes | |
| Rope pullout | 2 m | |
| Locking | without locking | |
| Manual locking | Yes | |
| Min Load capacity | 8.2 kg | |
| Max Load capacity | 11.4 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84253900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
