1515TLR | Aero-Motive
Torque drum, 1515TLR, load capacity (max) 6.8 kg, without locking, 1301760007
Unit Price (€ / pc.)
412.7396 € *
Standard delivery time from the manufacturer is: On Request

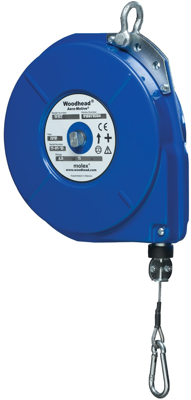

Torque Reel, 1301760007, Aero-Motive
Aero-Motive Torque Reel with Rigid Mount, Weight Range 0.0-6.8 kg (0.0-15.0 lb), 4.58 m (15.0') Travel
T Models offer hanging type installation and share the same design features and envelope size as FLR Series Retractors. TR Models offer rigid mount type for both horizontal or vertical mounting positions, based on application and installation needs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suspension Rope | galvanized | |
| Rope pullout | 4.6 m | |
| Weight | 4.1 kg | |
| Max Load capacity | 6.8 kg | |
| Fall protection | No | |
| Version | torque drum | |
| Shell Material | sheet metal enclosure | |
| Manual locking | No | |
| Spring fracture safety device | No | |
| Locking | without locking |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | not_relevant |
