1515T | Aero-Motive
TORQUE REEL [15LB/6.8KG] - 1.5
Unit Price (€ / pc.)
398.3287 € *
Available: 114 pcs.

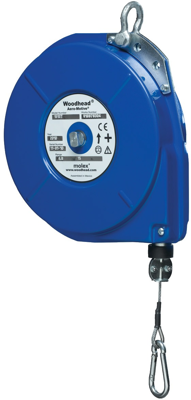

Torque Reel, 1301760004, Aero-Motive
Aero-Motive Torque Reel, Weight Range 0.0-6.80 kg (0.0-15.0 lb), 4.58 m (15.0') Travel
T Models offer hanging type installation and share the same design features and envelope size as FLR Series Retractors. TR Models offer rigid mount type for both horizontal or vertical mounting positions, based on application and installation needs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | torque drum | |
| Weight | 4.1 kg | |
| Max Load capacity | 6.8 kg | |
| Spring fracture safety device | No | |
| Rope pullout | 4.58 m | |
| Manual locking | No | |
| Fall protection | No | |
| Suspension Rope | galvanized | |
| Locking | with locking | |
| Shell Material | sheet metal enclosure |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
