1015T | Aero-Motive
Torque drum, 1015T, load capacity (max) 4.5 kg, with locking, 1301760003
Unit Price (€ / pc.)
398.3287 € *
Standard delivery time from the manufacturer is: 3 Weeks

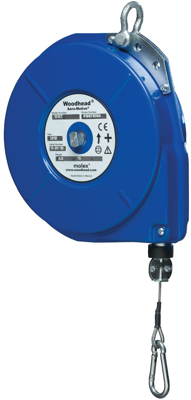

Torque Reel, 1301760003, Aero-Motive
Aero-Motive Torque Reel, Weight Range 0.0-4.5 kg (0.0-10.0 lb), 4.58 m (15.0') Travel
T Models offer hanging type installation and share the same design features and envelope size as FLR Series Retractors. TR Models offer rigid mount type for both horizontal or vertical mounting positions, based on application and installation needs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fall protection | No | |
| Product type | torque drum | |
| Shell Material | sheet metal enclosure | |
| Weight | 4.1 kg | |
| Spring fracture safety device | No | |
| Rope pullout | 4.6 m | |
| Locking | with locking | |
| Manual locking | No | |
| Max Load capacity | 4.5 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84253900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
