0515T | Aero-Motive

Torque drum, 0515T, load capacity (max) 2.3 kg, with locking, 1301760002

Order No.: 12P6661
EAN: 4099891450557
MPN:
0515T
1301760002
Series: T

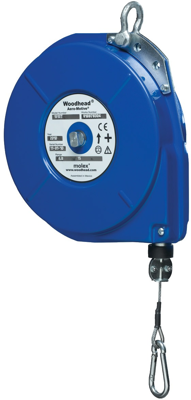

0515T Aero-Motive Spring Balancers Image 1
0515T Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
398.3287 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
398.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
398.3287 €

Torque Reel, 1301760002, Aero-Motive

Aero-Motive Torque Reel, Weight Range 0.0-2.3 kg (0.0-5.0 lb), 4.58 m (15.0') Travel

T Models offer hanging type installation and share the same design features and envelope size as FLR Series Retractors. TR Models offer rigid mount type for both horizontal or vertical mounting positions, based on application and installation needs.

Technical specifications
Max Load capacity 2.3 kg
Fall protection No
Rope pullout 4.6 m
Shell Material sheet metal enclosure
Weight 4.1 kg
Spring fracture safety device No
Manual locking No
Locking with locking
Suspension Rope galvanized
Version torque drum
Logistics
Country of origin DE
Customs tariff number 84289090
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform not_relevant
SVHC free Yes
