AC 166-1 ST/ 3 SW | Adels-Contact

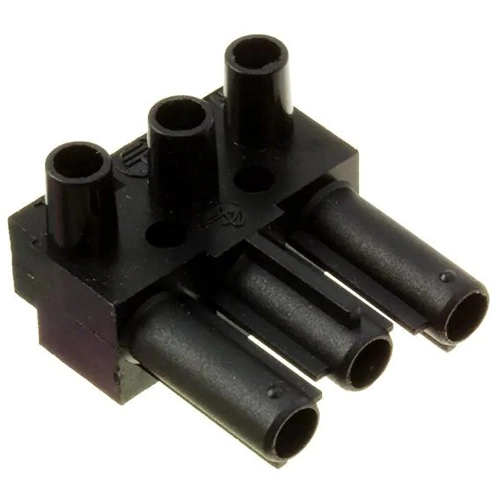

Plug, 3 pole, free-standing, screw connection, 0.5-2.5 mm², black, AC 166-1 ST/ 3 SW
Unit Price (€ / pc.)
1.4637 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
10 pcs.
1.3566 €
50 pcs.
1.2614 €
100 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, AC 166-1 ST/3 SCHWARZ, ADELS-CONT
Features

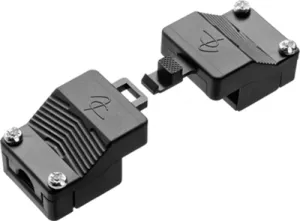

- With strain relief
- Flammability rating: V-2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Line filter present | No | |
| Switch illuminated | No | |
| Rated voltage UL/CSA | 600 V | |
| Colour | black | |
| Connection | screw connection | |
| Cable cross-section | 0.5-2.5 mm² | |
| Design | straight | |
| Rated current UL/CSA | 16 A | |
| Assembly | free-standing | |
| Fuse holder present | No | |
| Pin temperature | 100 °C | |
| Rated voltage IEC | 250 V | |
| Product type | plug | |
| Pin number | 3 pole | |
| Rated current IEC | 16 A | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
