AC 166-1 BU/ 3 SW | Adels-Contact

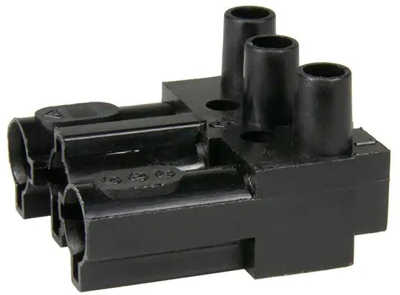

Socket, 3 pole, free-standing, screw connection, 0.5-2.5 mm², black, AC 166-1 BU/ 3 SW
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.7255 €
50 pcs.
1.6065 €
100 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket, AC 166-1 BU/3 SCHWARZ, ADELS-CONT
Features
- With protection against incorrect plugging
- With PE Function
- Flammability class per UL94: V2
- Degree of protection: IP20
- Code: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Line filter present | No | |
| Switch illuminated | No | |
| Rated voltage UL/CSA | 250 V | |
| Colour | black | |
| Connection | screw connection | |
| Cable cross-section | 0.5-2.5 mm² | |
| Design | straight | |
| Rated current UL/CSA | 16 A | |
| Assembly | free-standing | |
| Fuse holder present | No | |
| Pin temperature | 100 °C | |
| Rated voltage IEC | 250 V | |
| Product type | socket | |
| Pin number | 3 pole | |
| Rated current IEC | 16 A | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
