167063 | Adels-Contact

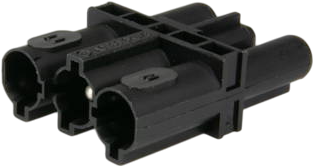

Intermediate coupling plug, 3 pole, screw mounting, screw connection, 0.5-2.5 mm², black, 167063
Order No.: 08H539
EAN: 4028012102853
MPN:
167063
ZWISCHENKUPPLUNG SCHWARZ
Unit Price (€ / pc.)
2.9631 € *
Next delivery: 10 pcs. on 2025-10-03
Total Price:
2.96 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9631 €
10 pcs.
2.7489 €
50 pcs.
2.5704 €
100 pcs.
2.4038 €
*incl. VAT plus shipping costs
Subject to prior sale
Connecting link, 167063, Adels-Contact
Connecting link, Push-in, 3 pole, Rated voltage: 250 V, Rated current: 20 A, Brass, Clamping range: 0.5-2.5 mm², Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Version | plug | |
| Product type | intermediate coupling | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Line filter present | No | |
| Power switch available | No | |
| Cable cross-section | 0.5-2.5 mm² | |
| Assembly | screw mounting | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Colour | black | |
| Pin temperature | 110 °C | |
| Switch illuminated | No | |
| Fuse holder present | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
