163 ST/3 DS | Adels-Contact

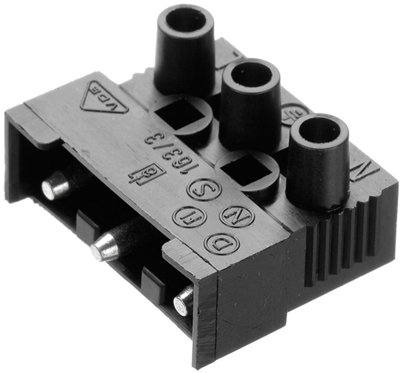

Plug, 3 pole, cable assembly, screw connection, 0.5-2.5 mm², black, 163 ST/3 DS
Unit Price (€ / pc.)
1.6779 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.68 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6779 €
10 pcs.
1.5589 €
50 pcs.
1.4518 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale
Collar connectors, type Adels-Contact 163../160.
With wire protection; Rated voltage to VDE/UL: 400 to 600 V. Rated current (EN 61 984): 16 A. Rated cross-section: 2.5 mm². Insulator: polyamide 6.6, black. Stripping length: 6.5 to 7.0 mm. Continuous operating temperature: +100 °C.
Technical attributes (type, version, number of poles): 163 ST/3 DS, male part, 3-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Rated voltage IEC | 400 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 16 A | |
| Cable cross-section | 0.5-2.5 mm² | |
| Connection | screw connection | |
| Assembly | cable assembly | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 100 °C | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Switch illuminated | No | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
