SUPER 88 | 3M
Insulation tape, 19 x 0.22 mm, vinyl, black, 20 mm, SUPER 88
Order No.: 14L1091
MPN:
SUPER 88
2619
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.4831 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,248.31 € *
Price list
Quantity
Price per unit*
100 pcs.
12.4831 €
650 pcs.
11.2336 €
1300 pcs.
10.1031 €
*incl. VAT plus shipping costs
Subject to prior sale

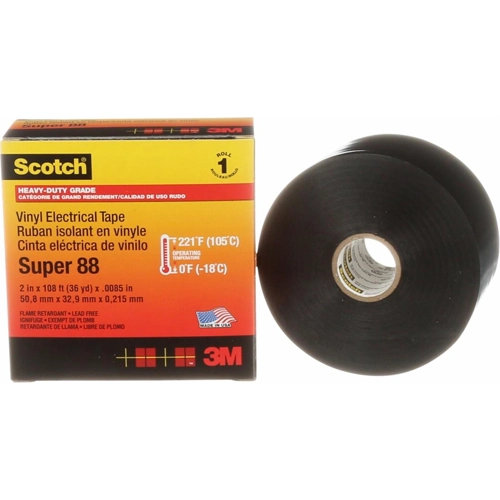

Scotch® Vinyl Electrical Tape Super 88
is a premium grade 8.5-mil (0.22 mm) thick, all-weather vinyl insulating tape. It is designed to perform continuously in ambient temperatures up to 105°C (220°F). The tape is conformable for cold weather applications down to -18°C (0°F). It has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions. The combination of elastic backing and aggressive adhesive provides moisture-tight electrical and mechanical protection with minimum bulk. Scotch® Tape Super 88 is an Underwriters’ Laboratories Listed and Canadian Standards Association Certified “Insulating Tape.”
Agency Approvals & Self Certifications
- UL Listed; UL 510 Standard “Insulating Tape” (product category OANZ), File E129200
- CSA Certification; Standard C22.2 No. 197-M1983 “PVC Insulating Tape,” File LR48769
Tape Features
- Color - black
- Polyvinyl chloride (PVC) backing
- Pressure-sensitive rubber-based adhesive
- Compatible with solid dielectric cable insulations
- Compatible with rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins
- Inhibits corrosion of electrical conductors
- For indoor or outdoor applications
Applications
- Primary electrical insulation for all wire and cable splices rated up to 600 volts and 105°C (220°F)
- Primary electrical insulation for 600-volt bus applications, and protective jacketing for high- and low-voltage bus
- Protective jacketing for high-voltage cable splices and repairs
- Harnessing of wires and cables
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | insulation tape | |
| Material | vinyl | |
| Length | 20 mm | |
| Width | 19 mm | |
| Thickness | 0.22 mm | |
| Adhesive cement | rubber | |
| max. operating temperature | 105 °C | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39191012 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
