GLASFASERGEWEBEBAND 27 | 3M

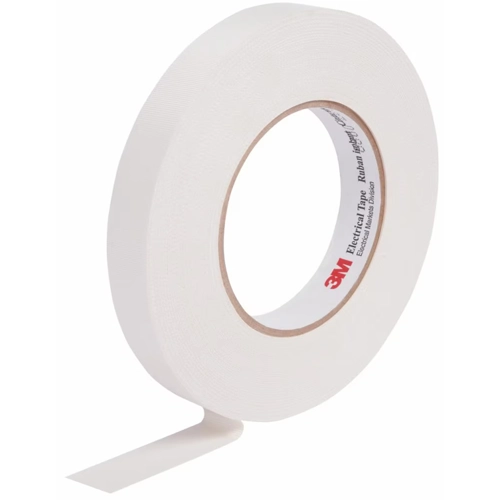

Insulation tape, 19 x 0.184 mm, glass fabric, white, 20 m, GLASFASERGEWEBEBAND 27
NCNR (non cancelable / non returnable)
3M™ Glass Cloth Electrical Tape 27 with Thermosetting Rubber Adhesive
7.25-mil (0.184 mm) thick tape composed of a 5-mil (0.127 mm) glass cloth backing coated on one side with a thermosetting rubber pressuresensitive adhesive. Commonly used in 600-volt dry, coil outer wrapping and insulating motor lead connector applications. Adhesive requires no heat, moisture or other manner of preparation to affect application. Designed for continuous operation not exceeding 150°C (302°F) UL listing, 130°C (266°F) CSA listing.
Color - Visual: White
Adhesive: Thermosetting Rubber
Backing: Glass Cloth
Backing Thickness - Nominal: 5 mil (0.127 mm)
Total Thickness: 7.25 +/- 1.25 mils (0.184 +/- 0.032 mm)
Adhesion to Steel - Minimum: 38 oz/in (4.2 N/cm)
Breaking Strength - Minimum: 120 lb/in (210 N/cm)
Comparative Tracking Index (CTI): I
Dielectric Breakdown - Minimum: 2725 V
Electrolytic Corrosion Factor: 0.9
| Filter | Property | Value |
|---|---|---|
| Product type | insulation tape | |
| Version | glass fabric | |
| Length | 20 m | |
| Width | 19 mm | |
| Thickness | 0.184 mm | |
| Adhesive cement | rubber | |
| max. operating temperature | 150 °C | |
| Colour | white |
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39191012 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
