J-Y(ST)Y 8X2X0,8 | Telecommunication Cables
Telephone cable, 16-wire, J-Y(ST)Y, 8 x 2 x 0.8 mm, gray, PVC, J-Y(ST)Y 8X2X0,8
Unit Price (€ / mtr.)
1.6779 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
167.79 € *
Price list
Quantity
Price per unit*
100 mtr.
1.6779 €
500 mtr.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale

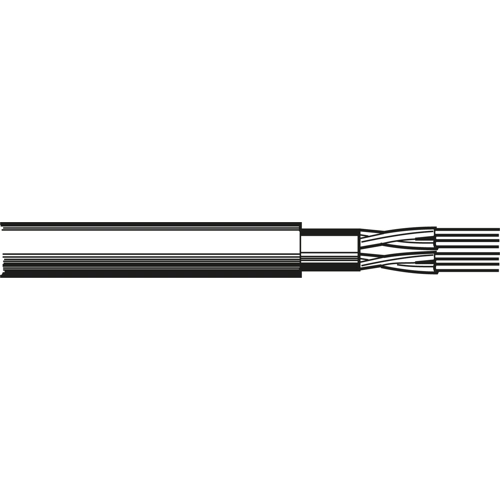

Data and telecommunication cables, shielded, type J-Y(St)Y.
Cables to VDE 0815 for permanent installation within and outside of closed rooms, copper wire, bright, with color-coded PVC insulation, twisted pairs in layers with foil winding, add-on wire and common aluminum foil with plastic backing
Conductor diameter 0.8 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Cable structure | 8 x 2 x 0.8 mm | |
| Outer diameter | 10.2 mm | |
| Material | PVC | |
| Colour | gray | |
| Core colour sequence | DIN VDE 0815 | |
| Inner diameter | 0.8 mm | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Number of cores | 16 | |
| Temperature range (active) | -5 °C to 50 °C | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444991 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
