SS22SDP2 | Slide Switches and Coding Switches
Slide switch, On-On, 2 pole, straight, 100 mA/30 VDC, SS22SDP2
Unit Price (€ / pc.)
1.6660 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
166.60 € *
Price list
Quantity
Price per unit*
100 pcs.
1.6660 €
200 pcs.
1.5708 €
*incl. VAT plus shipping costs
Subject to prior sale

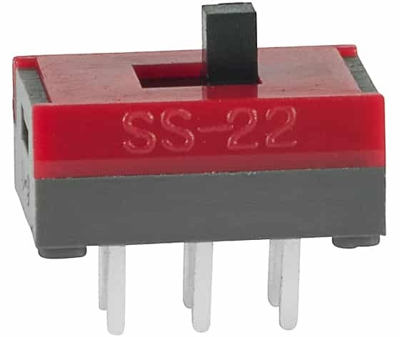

Slide switch, SS22SDP2
The SS22SDP2 is a ultra-miniature slide switch with compact dimensions and low profile allow high density mounting and close stacking of PC boards. Double molded thermoset base and thermoplastic housing prevent loosening of terminals due to high soldering temperatures.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | slide switch | |
| Shift position | On-On | |
| Pin number | 2 pole | |
| Actuation | on top | |
| Design | straight | |
| Connection | PCB pin | |
| contact surface | silver-plated | |
| Breaking capacity | 100 mA/30 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
