BME280 | Sensor ICs
Combination sensor, 300-1100 hPa, 1.71-3.6 V, BME280, LGA-8, -40 to 85 °C, BME280
Order No.: 65S250
MPN:
BME280
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.1174 € *
Standard delivery time from the manufacturer is: 1 Week

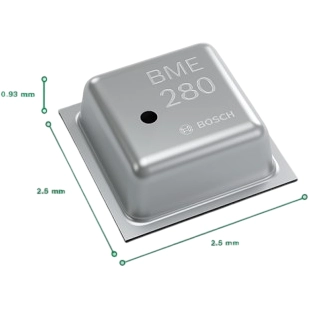

Humidity sensor, BME280, Bosch Sensortec
The BME280 is a humidity sensor especially developed for mobile applications and wearables where size and low power consumption are key design parameters. The unit combines high linearity and high accuracy sensors and is perfectly feasible for low current consumption, long-term stability and high EMC robustness. The humidity sensor offers an extremely fast response time and therefore supports performance requirements for emerging applications such as context awareness, and high accuracy over a wide temperature range.
Features
- Relative humidity barometric pressure
- Low power consumption
- Fitness tracking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | combination sensor | |
| measurement range | 300-1100 hPa | |
| Voltage | 1.71-3.6 V | |
| Assembly | SMD | |
| Enclosure | LGA-8 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
