MRK403-A | Rotary Switches and Selector Switches
Rotary switch, 4 pole, 3 stage, 30°, interrupting, 28 V, MRK403-A
Unit Price (€ / pc.)
18.8139 € *
Standard delivery time from the manufacturer is: 35 Weeks
Total Price:
940.70 € *
Price list
Quantity
Price per unit*
50 pcs.
18.8139 €
100 pcs.
17.2788 €
500 pcs.
16.2792 €
*incl. VAT plus shipping costs
Subject to prior sale

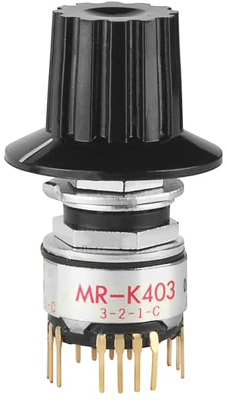

Rotary switch, MRK403-A
The MRK403-A is a rotary switch with low profile body of MRF model accommodates space limitations required for PCB mounting. For the MRA and MRK bushing mount models, the range of behind panel body depths is 8.2 mm to 17.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Connection | PCB pin | |
| Switching Mode | interrupting | |
| Number of steps | 3 | |
| Breaking capacity | 0.4 VA | |
| Rated voltage | 28 V | |
| Switching angle | 30 ° | |
| Product type | rotary switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365015 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
