MRK112-A | Rotary Switches and Selector Switches
Rotary switch, 1 pole, 12 stage, 30°, interrupting, 28 V, MRK112-A
Unit Price (€ / pc.)
18.5878 € *
Available: 24 pcs.
Total Price:
18.59 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5878 €
10 pcs.
16.8980 €
25 pcs.
15.6366 €
50 pcs.
14.3633 €
100 pcs.
13.5184 €
*incl. VAT plus shipping costs
Subject to prior sale

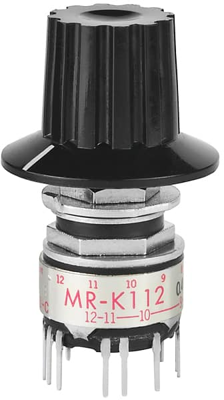

Rotary switch, MRK112-A
The MRK112-A is a rotary switch with low profile body of MRF model accommodates space limitations required for PCB mounting. For the MRA and MRK bushing mount models, the range of behind panel body depths is 8.2 mm to 17.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching angle | 30 ° | |
| Breaking capacity | 0.4 VA | |
| Pin number | 1 pole | |
| Switching Mode | interrupting | |
| Connection | PCB pin | |
| Rated voltage | 28 V | |
| Product type | rotary switch | |
| Number of steps | 12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365015 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
