300146485 | Rivets, Dowels
Blind rivet, hole Ø 4 mm, L 15 mm, aluminum alloy, for clamping range 10.5 - 12.5 mm, DIN 7337, 300146485
Order No.: 18H6795
EAN: 4099889507409
MPN:
300146485
As a private customer, you can buy this item as soon as we have it back in stock.

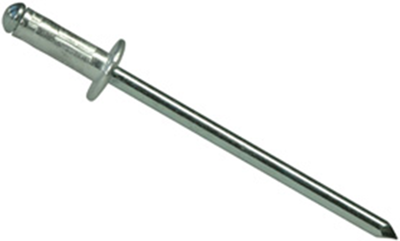

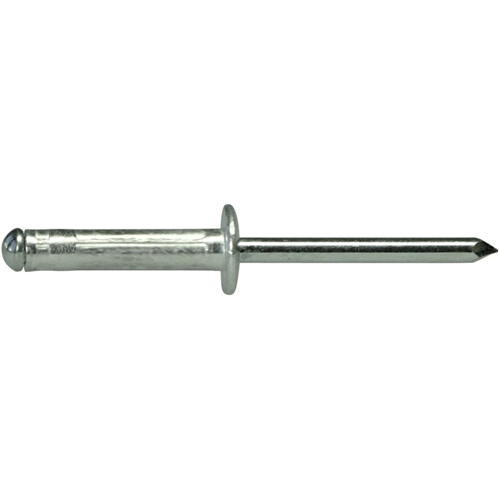

Blind rivets, DIN 7337, type BL.
With flat round head, practical for light engineering and electronics; Material: aluminum alloy shaft with steel drift. Corresponding blind rivet tongs are described in chapter L.
For 4.0/4.1 mm mounting hole, type BL.

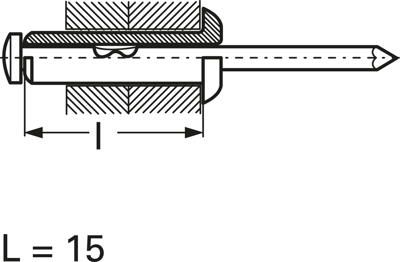

Technical attributes (type, mounting hole, shaft length L, rivetable material thickness M): 4/16, L 15, M 10.5 to 12.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | blind rivet | |
| Hole diameter | 4 mm | |
| Length | 15 mm | |
| Material | aluminum alloy | |
| Suitable for | clamping range 10.5 - 12.5 mm | |
| Standard number | DIN 7337 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76161000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
