10-120104-00/0030 | Rivets, Dowels
Tubular rivet, hole Ø 2 mm, L 4 mm, brass, for wall thickness 0.3 mm, DIN 7340, 10-120104-00/0030
Order No.: 18H644
EAN: 4099889506990
MPN:
10-120104-00/0030
Unit Price (€ / pc.)
0.1702 € *
Available: 22,280 pcs.
Total Price:
17.02 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1702 €
1000 pcs.
0.1369 €
5000 pcs.
0.1154 €
10000 pcs.
0.0976 €
*incl. VAT plus shipping costs
Subject to prior sale

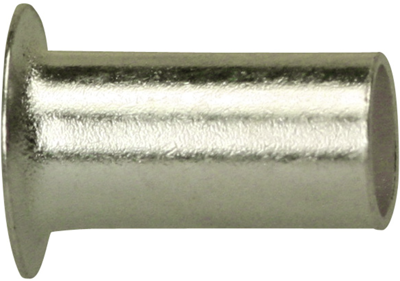

Tubular rivets, to DIN 7340, type 10.
With flat head.
Technical attributes (length (L), diameter (D), wall thickness (S)): L 4.0, D 2.0, S 0.3 mm, Nickel plated brass
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Hole diameter | 2 mm | |
| Length | 4 mm | |
| Standard number | DIN 7340 | |
| Material | brass | |
| Product type | tubular rivet | |
| Suitable for | wall thickness 0.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74152900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
