FBL 64P AWG28 GRAU | Ribbon Cables

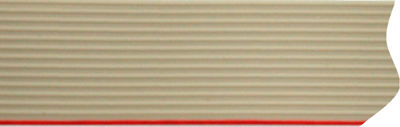

Ribbon cable, 64 pole, pitch 1.27 mm, 0.09 mm², AWG 28, PVC, gray, FBL 64P AWG28 GRAU
Order No.: 94F4572
EAN: 4099891235161
MPN:
FBL 64P AWG28 GRAU
Unit Price (€ / mtr.)
10.8171 € *
Available: 240 mtr.
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 mtr.
10.8171 €
10 mtr.
9.7342 €
100 mtr.
9.0083 €
500 mtr.
7.9254 €
1000 mtr.
7.2114 €
*incl. VAT plus shipping costs
Subject to prior sale

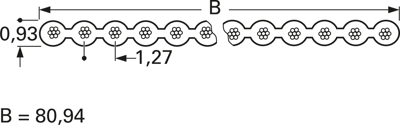

Flat ribbon cables, 1.27 mm grid, type FB..28127G.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Halogen free | No | |
| Height | 0.93 mm | |
| Colour | gray | |
| Test voltage | 2 kV | |
| Cable cross-section | 0.09 mm² | |
| Version | flat ribbon cable | |
| Temperature range (active) | -20 °C to 105 °C | |
| AWG cross-section | AWG 28 | |
| Number of cores | 64 | |
| Rated voltage | 300 V | |
| Width | 80.94 mm | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
