FBL 40P AWG28 GRAU | Ribbon Cables
Ribbon cable, 40 pole, pitch 1.27 mm, 0.09 mm², AWG 28, PVC, gray, FBL 40P AWG28 GRAU
Order No.: 94F456
EAN: 4099891235130
MPN:
FBL 40P AWG28 GRAU
Unit Price (€ / mtr.)
6.5450 € *
Available: 346 mtr.
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 mtr.
6.5450 €
10 mtr.
5.9024 €
100 mtr.
5.4502 €
500 mtr.
4.8076 €
1000 mtr.
4.3673 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat ribbon cables, 1.27 mm grid, type FB..28127G.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| AWG cross-section | AWG 28 | |
| Shielding | unshielded | |
| Cable material | copper, tin-plated | |
| Colour | gray | |
| Cable cross-section | 0.09 mm² | |
| Temperature range (active) | -20 °C to 105 °C | |
| Grid | 1.27 mm | |
| Halogen free | No | |
| Rated voltage | 300 V | |
| Test voltage | 2 kV | |
| Number of cores | 40 | |

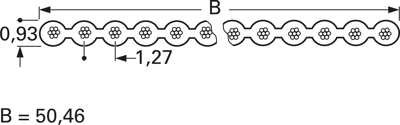

| Width | 50.46 mm | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Height | 0.93 mm | |
| Version | flat ribbon cable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
