FBL 15P AWG26 GRAU | Ribbon Cables

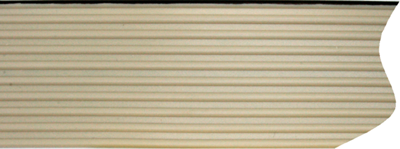

Ribbon cable, 15 pole, pitch 2.5 mm, 0.14 mm², AWG 26, PVC, gray, FBL 15P AWG26 GRAU
Order No.: 94F492
EAN: 4099891235291
MPN:
FBL 15P AWG26 GRAU
Unit Price (€ / mtr.)
4.6767 € *
Available: 23 mtr.
Total Price:
4.68 € *
Price list
Quantity
Price per unit*
1 mtr.
4.6767 €
10 mtr.
4.2483 €
100 mtr.
3.6771 €
500 mtr.
3.2606 €
1000 mtr.
2.8322 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat ribbon cables, 2.5 mm grid, type FB..26250G.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Colour | gray | |
| Number of cores | 15 | |
| Version | flat ribbon cable | |
| Cable material | copper, tin-plated | |
| Shielding | unshielded | |
| AWG cross-section | AWG 26 | |
| Rated voltage | 300 V | |
| Core insulation material | PVC | |
| Test voltage | 2 kV | |

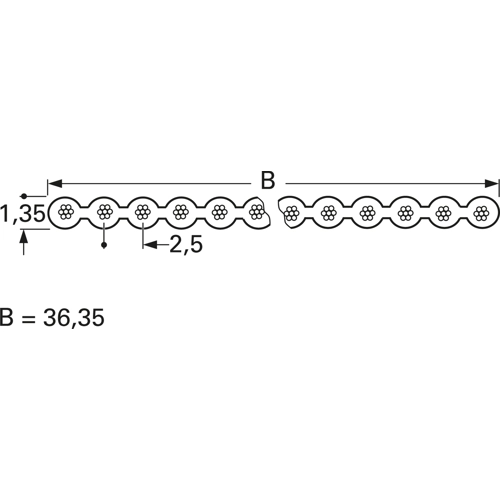

| Height | 1.35 mm | |
| Width | 36.35 mm | |
| Grid | 2.5 mm | |
| Cable cross-section | 0.14 mm² | |
| Temperature range (active) | -10 °C to 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
