FBL 10P AWG26 BLAU | Ribbon Cables

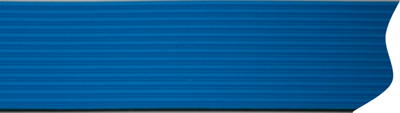

Ribbon cable, 10 pole, pitch 1.27 mm, 0.14 mm², AWG 26, PVC, blue, FBL 10P AWG26 BLAU
Order No.: 94F460
EAN: 4099891235178
MPN:
FBL 10P AWG26 BLAU
Unit Price (€ / mtr.)
2.6180 € *
Available: 2,036 mtr.
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 mtr.
2.6180 €
10 mtr.
2.3800 €
100 mtr.
2.0587 €
500 mtr.
1.8207 €
1000 mtr.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat ribbon cables, 1.27 mm grid, type FB..26127BL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| AWG cross-section | AWG 26 | |
| Number of cores | 10 | |
| Colour | blue | |
| Test voltage | 2 kV | |
| Temperature range (active) | -20 °C to 105 °C | |
| Cable cross-section | 0.14 mm² | |
| Core insulation material | PVC | |

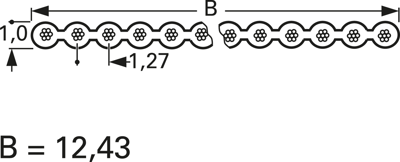

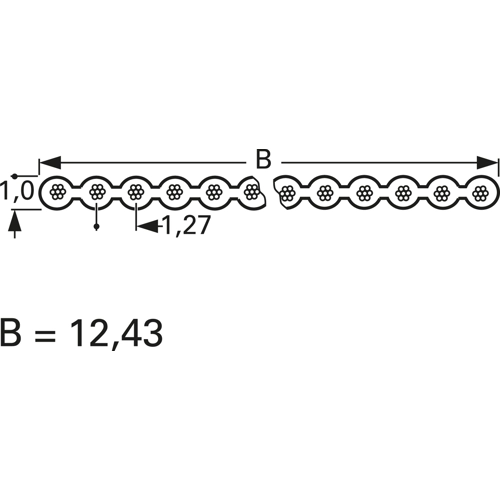

| Width | 12.43 mm | |
| Height | 1 mm | |
| Version | flat ribbon cable | |
| Shielding | unshielded | |
| Halogen free | No | |
| Rated voltage | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
