FBL 08P AWG26 DIN47100 | Ribbon Cables
Ribbon cable, 8 pole, pitch 1.27 mm, 0.14 mm², AWG 26, PVC, FBL 08P AWG26 DIN47100
Order No.: 94F635
EAN: 4099891235574
MPN:
FBL 08P AWG26 DIN47100
Unit Price (€ / mtr.)
2.4871 € *
Available: 137 mtr.
Total Price:
2.49 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4871 €
10 mtr.
2.2610 €
100 mtr.
1.9516 €
500 mtr.
1.7255 €
1000 mtr.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale

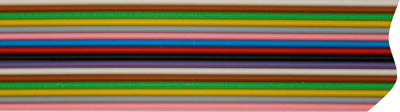

Flat ribbon cables, 1.27 mm grid, type FB..26127B.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 300 V | |
| Cable cross-section | 0.14 mm² | |
| Core insulation material | PVC | |
| Cable material | copper, tin-plated | |

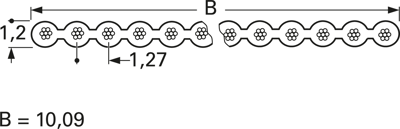

| Grid | 1.27 mm | |
| Width | 10.09 mm | |
| Temperature range (active) | -20 °C to 105 °C | |
| Test voltage | 2 kV | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| AWG cross-section | AWG 26 | |
| Halogen free | No | |
| Shielding | unshielded | |
| Height | 1.2 mm | |
| Number of cores | 8 | |
| Version | flat ribbon cable |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
