34.1650 | RCA Connectors
RCA chassis socket, Cincheinbaubuchse, löten, Einbaumontage, 34.1650
Order No.: 60F136
EAN: 4007754026740
MPN:
34.1650
Unit Price (€ / pc.)
16.2792 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
16.28 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2792 €
10 pcs.
15.3272 €
50 pcs.
14.3633 €
100 pcs.
13.4113 €
*incl. VAT plus shipping costs
Subject to prior sale

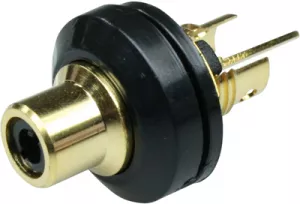

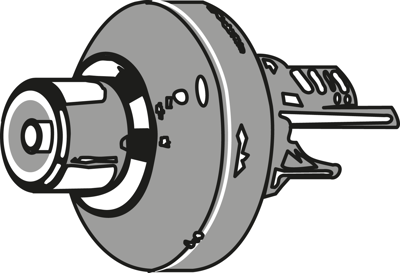

RCA panel jacks, type T-706GI/NI.

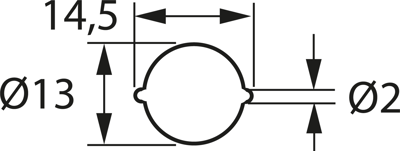

For ultimate audio quality, solder terminals, fully insulated; Mounting dimensions: hole diameter 12.7 mm. Outer diameter: 19 mm. With color ring code.
Type: T–706GI, gold–plated, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Colour Marking | black | |
| Assembly | built-in mounting | |
| diameter | 19 mm | |
| Contact connection | solder connection | |
| Version | socket | |
| Shell Material | metal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
