QTP732.76812B20R | Quartze
Crystal, 32.768 kHz, 12.5 pF, ±20 ppm, 65 kΩ, SMD, QTP732.76812B20R
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2666 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
799.68 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.2666 €
12000 pcs.
0.2309 €
*incl. VAT plus shipping costs
Subject to prior sale

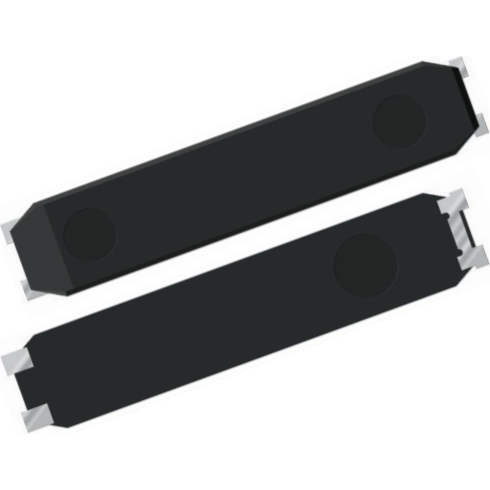

Plastic SMD Tuning Fork, QTP732.76812B20R, QANTEK Technology Corporation
Plastic SMD Tuning Fork suitable for small mobile telecommunication devices.
Features
- Most appropriate for high-density circuit board by the small surface mount type
- Embeded with heat resistant cylinder type crystal bring highly stable characteristics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency | 32.768 kHz | |
| Tolerance | ±20 ppm | |
| Load Capacity | 12.5 pF | |
| ESR (Equivalent Series Resistance) | 65 kΩ | |
| Assembly | SMD | |
| Length | 6.7 mm | |
| Width | 1.4 mm | |
| Height | 1.35 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85416000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
