QC3225.0000F53R3 | Quartze
Crystal, 25 MHz, 12 pF, ±30 ppm, SMD, QC3225.0000F53R3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1464 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
439.11 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.1464 €
12000 pcs.
0.1119 €
*incl. VAT plus shipping costs
Subject to prior sale

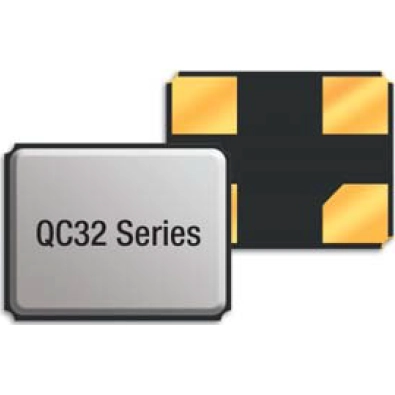

SMD Quartz Crystal Unit, QC3225.0000F53R3, QANTEK Technology Corporation
SMD Quartz Crystal Unit 2.5 x 3.2, 4-Pad.
Features
- Low in height, suitable for thin equipment
- Ceramic package and metal lid assures high reliability
Applications
- High density applications
- Modem, communication and test equipment
- PMCIA, wireless applications
- Automotive applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency | 25 MHz | |
| Tolerance | ±30 ppm | |
| Load Capacity | 12 pF | |
| Assembly | SMD | |
| Length | 3.2 mm | |
| Width | 2.5 mm | |
| Height | 0.8 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Number of connection pads | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85416000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
