08450 A | Power Transformers

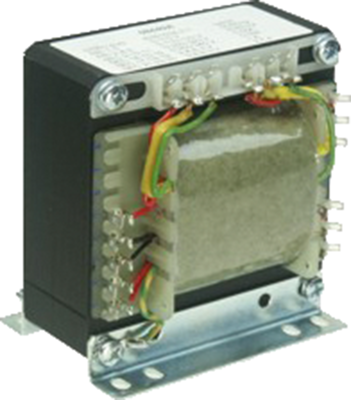

Transformer, 140 VA, 250 V/340 V/5 V, 0.15 A/2 A, 08450 A

Order No.: 12C155
EAN: 4099891343583
MPN:
08450 A
08450 A Power Transformers
Image may differ
Print
Key Specification:
Output power 140 W
Primary voltage 110/240 V
Secondary voltage (1) 250 V
Secondary voltage (2) 340 V
Secondary voltage (3) 5 V
Show variants: 3
Download Datasheet Technical specifications
Unit Price (€ / pc.)
98.3892 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
98.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
98.3892 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

For open wiring. With bracket, mounting frame and solder lugs, prepared for devices of safety class I. Design to EN 61558. Insulation material class: B. Rated ambient temperature: +40 °C. Degree of protection: IP 00. Frequency: 50 to 60 Hz.

Secondary current 150 mA, type NTRN 150/2.
Technical specifications
Secondary amperage 1 0.15 A
Output power 140 W
Width 76.5 mm
Secondary voltage (1) 250 V
Height 108.5 mm
Primary voltage 110/240 V
Secondary voltage (3) 5 V
Secondary voltage (2) 340 V
Length 102 mm
secondary amperage 2 2 A
Articles of same specification 0
Logistics
Customs tariff number 85043180
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
