08449 A | Power Transformers

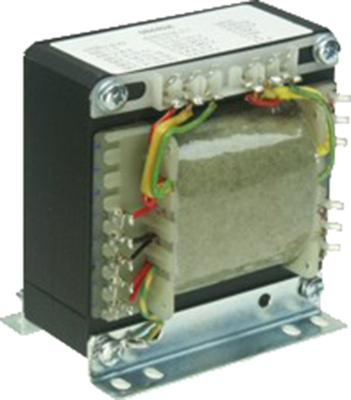

Transformer, 78 VA, 250 V/340 V/4 V, 0.08 A/1 A, 08449 A

Order No.: 12C140
EAN: 4099891343569
MPN:
08449 A
08449 A Power Transformers
Image may differ
Print
Key Specification:
Output power 78 W
Primary voltage 110/240 V
Secondary voltage (1) 250 V
Secondary voltage (2) 340 V
Secondary voltage (3) 4 V
Show variants: 3
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
129.71 € *
Next delivery: 1 pcs. on 2026-03-13
Total Price:
129.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
129.71 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

For open wiring. With bracket, mounting frame and solder lugs, prepared for devices of safety class I. Design to EN 61558. Insulation material class: B. Rated ambient temperature: +40 °C. Degree of protection: IP 00. Frequency: 50 to 60 Hz.

Secondary current 80 mA, type NTRN 80/2.
Technical specifications
Output power 78 W
Primary voltage 110/240 V
Secondary voltage (1) 250 V
Secondary voltage (2) 340 V
Secondary voltage (3) 4 V
Secondary amperage 1 0.08 A
secondary amperage 2 1 A
Length 85 mm
Width 63.5 mm
Height 90 mm
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
