05332 A | Power Transformers

Name: Universal transformer, 12 VA, 10 V/12 V/15 V, 0.4 A, 05332 A
SKU: 35C100
Availability: InStock

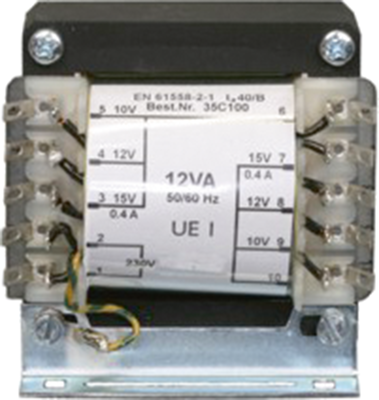

Universal transformer, 12 VA, 10 V/12 V/15 V, 0.4 A, 05332 A

Order No.: 35C100

EAN: 4099891343781

MPN:

05332 A

Image may differ

Key Specification:

Output power 12 W

Primary voltage 230 V

Secondary voltage (1) 10 V

Secondary voltage (2) 12 V

Secondary voltage (3) 15 V

Show variants: 6

Download Datasheet Technical specifications

Unit Price (€ / pc.)

49.1946 € *

Available: 8 pcs.

Total Price:

49.19 € *

Price list

Quantity

Price per unit*

1 pcs.

49.1946 €

5 pcs.

46.2434 €

15 pcs.

44.4703 €

50 pcs.

42.5068 €

150 pcs.

40.7337 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Universal transformers, type UE 1

Electrically isolated windings (types UE 1 with protective winding). Secondary 2 x 0, 10, 12, 15 V. The two secondary windings can be wired in serial or parallel mode to obtain the following secondary voltages: 2, 3, 4, 5, 6, 7, 8, 10, 12, 13, 14, 15, 17, 18, 20, 22, 24, 25, 27, 30 V.

Technical specifications

Filter	Property	Value
	Output power	12 W
	Primary voltage	230 V
	Secondary voltage (1)	10 V
	Secondary voltage (2)	12 V
	Secondary voltage (3)	15 V
	Secondary amperage 1	0.4 A
	Length	55 mm
	Width	47.7 mm
	Height	60.5 mm
