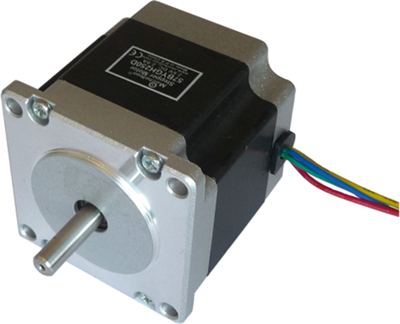

57BYGH250D

Hybrid stepper motor, 2.6 V (DC), 2 A, 95 Ncm, 57BYGH250D

default S
front S
default L
front L
Total price
(38.13 € * / pcs.)
38.13 €
Available: 3 pcs.
Quantity
Price per piece*
1 pcs.
38.13 €
10 pcs.
35.08 €
25 pcs.
32.27 €
50 pcs.
29.37 €
*incl. VAT plus shipping costs
Description
Motors, null

Hybrid stepper motors, type Mecheltron 57BYGH250D.

2-phase; Step angle: 1.8°. Rated voltage: 2.6 V. Rated current: 2,0 A. Resistance: 1.32 ohm. Inductance: 3.19 mH. Torque: 0.95 N/m. Startup torque: 0.67 N/m. Rotor inertia: 280 g/cm². Insulation class: B. Insulation resistance: 100 Mohm/500 VDC. g.

Type: 57BYGH250D, hybrid stepper motor

Technical specifications
Version Hybrid stepper motor
Torque 95 Ncm
Rated voltage (DC) 2.6 V
Rated current 2 A
Logistics
Country of origin CN
Customs tariff number 85011010
Compliance
Guidline date 6/8/11
RoHS confom Yes
SVHC free Yes
Download
Technical Data Sheet - EN
Technical Data Sheet
