RMLV1616AGSA-5S2#AA0 | Memory ICs

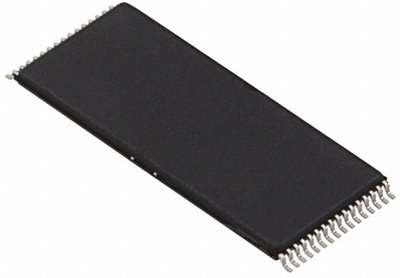

SRAM, 16 Mbit, TFSOP-48, Renesas RMLV1616AGSA-5S2#AA0
Order No.: 53S1392
MPN:
RMLV1616AGSA-5S2#AA0
Unit Price (€ / pc.)
11.1146 € *
Standard delivery time from the manufacturer is: 2 Weeks
SRAM Memory IC, RMLV1616AGSA-5S2#AA0, Renesas
The RMLV1616AGSA-5S2#AA0 is a 16-Mbit static RAM organized as 1,048,576-word × 16-bit, fabricated by Renesas’s high-performance Advanced LPSRAM technology. The RMLV1616AGSA-5S2#AA0 has realized higher density, higher performance, and low power consumption. The RMLV1616AGSA-5S2#AA0 offers low standby power dissipation; therefore, it is suitable for battery backup systems. It is offered in a 12mm × 20mm 48-pin plastic TSOP (I) package.
Features
- Common data input and output - Three state output
- Directly TTL compatible - All inputs and outputs
- Battery backup operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Voltage | 2.7-3.6 V | |
| max. operating temperature | 85 °C | |
| Technology | SRAM | |
| Enclosure | TFSOP-48 | |
| min. operating temperature | -40 °C | |
| Memory size | 16 Mbit | |
| Access time | 55 s |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Customs tariff number | 85423245 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
