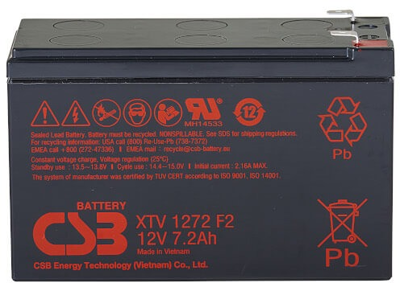

XTV1272FR | Lead-Acid Batteries, Lithium-Ion Batteries
Lead-battery, 12 V, 7.2 Ah, 151 x 65 x 99 mm, faston plug 6.35 mm
Images may differ
Total price
( 35.4501 € * / pcs.)
35.45 €
Available: 156 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
35.4501 €
5 pcs.
33.3200 €
15 pcs.
32.0467 €
50 pcs.
30.6306 €
150 pcs.
29.3573 €
*incl. VAT plus shipping costs
Description
Lead-Accu, XTV1272FR, CSB
XTV 1272 is a general battery up to 12 years expected life in standby service or more than 260 cycles at 100% discharge in cycle service . XTV has a wider operating temperature range, which makes them more suitable for the systems in harsh conditions.
Technical specifications
| Connection | faston plug 6.35 mm | |
| Width | 65 mm | |
| Weight | 2.75 kg | |
| Height | 99 mm | |
| Length | 151 mm | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -20 °C | |
| Nominal capacity | 7.2 Ah | |
| Rated voltage | 12 V | |
| Technology | Lead |
Logistics
| Country of origin | VN |
| Customs tariff number | 85072080 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
