UL STYLE 1007 AWG 24 BLAU | Insulated stranded wires

PVC-switching strand, UL-Style 1007/1569, AWG 24, 7 x 0.2 mm, blue, outer Ø 1.5 mm, UL STYLE 1007 AWG 24 BLAU

Order No.: 91F5226
EAN: 4099891169619
MPN:
UL STYLE 1007 AWG 24 BLAU
UL STYLE 1007 AWG 24 BLAU Insulated stranded wires

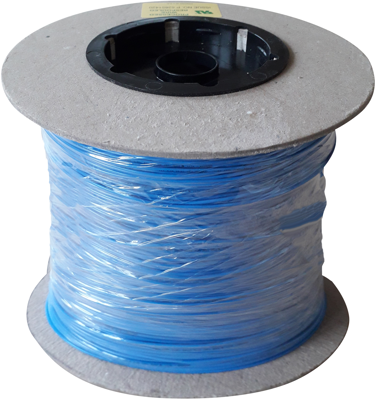

Image may differ
Unit Price (€ / mtr.)
0.2523 € *
Available: 610 mtr.
Total Price:
153.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
610 mtr.
0.2523 €

Stranded wire, UL STYLE 1007 AWG 24 BLUE, N.A.

UL approved stranded wires according to UL AWM Style 1007/1569, for internal wiring of in electrical equipment and control boxes. Conductor: tinned stranded copper wire, conductor construction: 7 x 0.203 mm, insulation: special PVC, Shore hardness (A) 88 ±3, flame retardant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 90 Ω/km at 20° C, dielectric strength: min. 3000 V/50 Hz (1 min.), insulation resistance: min. 100 MΩ x km, operating voltage: max. 300 V. Temperature range static/dynamic: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).

Technical specifications
Filter Property Value
Halogen free No
Core insulation material PVC
AWG cross-section AWG 24
Test voltage 3 kV
Rated voltage 300 V
Colour blue
Temperature range (unmoved) -30 °C to 105 °C
Standard number UL
Cable material copper, tin-plated
Cable structure 7 x 0.2 mm
Temperature range (active) -5 °C to 105 °C
Outer diameter 1.5 mm
Logistics
Property Value
Customs tariff number 85444995
Original Packaging Reel with 610 meters
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
