UL STYLE 1007 AWG 18 ROT | Insulated stranded wires

PVC-switching strand, UL-Style 1007/1569, AWG 18, 28 x 0.2 mm, red, outer Ø 2.1 mm, UL STYLE 1007 AWG 18 ROT

Order No.: 91F5260
EAN: 4099891169954
MPN:
UL STYLE 1007 AWG 18 ROT

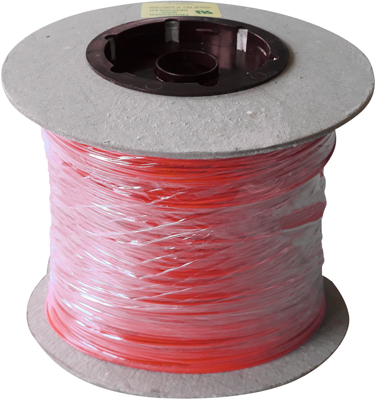

UL STYLE 1007 AWG 18 ROT Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.3927 € *
Available: 915 mtr.
Total Price:
119.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
305 mtr.
0.3927 €

Stranded wire, UL STYLE 1007 AWG 18 RED, N.A.

UL approved stranded wires according to UL AWM Style 1007/1569, for internal wiring of in electrical equipment and control boxes. Conductor: tinned stranded copper wire, conductor construction: 28 x 0.2 mm, insulation: special PVC, Shore hardness (A) 88 ±3, flame retardant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 21.8 Ω/km at 20° C, dielectric strength: min. 3000 V/50 Hz (1 min.), insulation resistance: min. 100 MΩ x km, operating voltage: max. 300 V. Temperature range static/dynamic: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).

Technical specifications
Filter Property Value
AWG cross-section AWG 18
Outer diameter 2.1 mm
Standard number UL
Core insulation material PVC
Temperature range (active) -5 °C to 105 °C
Cable material copper, tin-plated
Temperature range (unmoved) -30 °C to 105 °C
Rated voltage 300 V
Cable structure 28 x 0.2 mm
Test voltage 3 kV
Colour red
Halogen free No
Logistics
Property Value
Customs tariff number 85444995
Country of origin DE
Original Packaging Reel with 305 meters
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
