BYB-5-90F200 | by.B
Taped wire, electrolytic copper E-CU 58, hot dip tinned, (W) 85 mm, Ø 0.6 mm, BYB-5-90F200
Order No.: 90F200
EAN: 4099891191283
MPN:
BYB-5-90F200
Unit Price (€ / pc.)
0.1190 € *
Available: 31,068 pcs.
Total Price:
1.19 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1190 €
100 pcs.
0.1059 €
1000 pcs.
0.0964 €
5000 pcs.
0.0857 €
15000 pcs.
0.0774 €
*incl. VAT plus shipping costs
Subject to prior sale

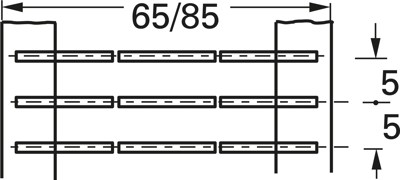

Axial wire bridges, belted design with 5.0 mm spacing, shiny, washable.
Material: Electrolytic copper E-CU 58, hot-dip tinned with pure tin in accordance with DIN EN 13602, tinning type C
Nominal wire diameter: 0.6 (+0.018 mm -0.009 mm)
Width (dimension A): 85 (±1.0 mm)
Layer thickness: 6 μm (± 2 μm)
Tensile strength: approx. 240 N/mm²
Elongation at break: min. 23 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 85 mm | |
| Version | taped wire | |
| Material | electrolytic copper E-CU 58, hot dip tinned | |
| diameter | 0.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74082900 |
| Original Packaging | Reel with 15,000 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
