72818 | Flat Plugs
Faston plug, 2.8 x 0.8 mm (2x), L 14.5 mm, uninsulated, straight, 72818
Order No.: 05F2164
EAN: 4099889611380
MPN:
72818
Unit Price (€ / pc.)
0.5236 € *
Available: 1,818 pcs.
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
10 pcs.
0.4879 €
100 pcs.
0.4046 €
1000 pcs.
0.3451 €
10000 pcs.
0.2737 €
*incl. VAT plus shipping costs
Subject to prior sale

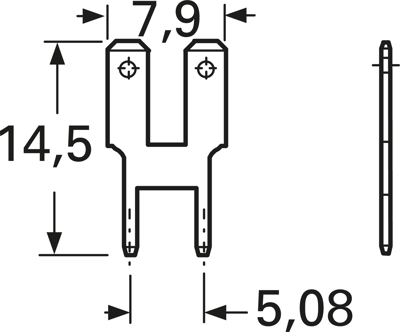

PCB mounting tab, 72818, N.A
Mating width 2.8 mm, mating thickness 0.8 mm, with snap-in hole, made of tinned brass, not insulated, to DIN 46244.
Type: 00.12c, PCB mounting tab.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 14.5 mm | |
| Nominal size according to DIN | DIN 46244 | |
| Plug width x plug thickness | 2.8 x 0.8 mm (2x) | |
| Design | straight | |
| Connection | solder connection | |
| Material | brass, tin-plated | |
| Version | faston plug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
