OKD 1000-B | Fiber Optic Cables
Fibre optic cable, PE, black, OKD 1000-B
Order No.: 98F675
EAN: 4099891267544
MPN:
OKD 1000-B
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
9.6033 € *
Available: 340 mtr.
Total Price:
9.60 € *
Price list
Quantity
Price per unit*
1 mtr.
9.6033 €
10 mtr.
8.4490 €
100 mtr.
7.4018 €
500 mtr.
7.1281 €
1000 mtr.
6.8306 €
*incl. VAT plus shipping costs
Subject to prior sale

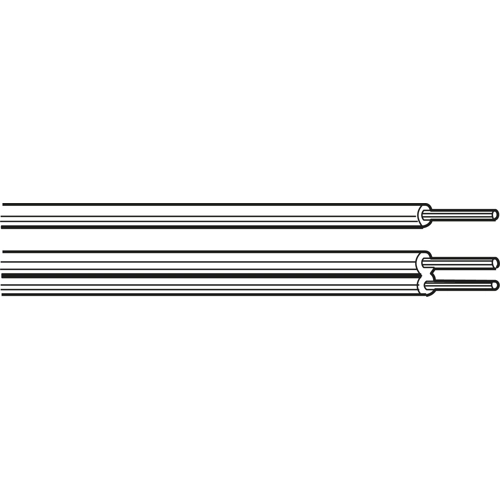

Plastic FOCs, type OKE/OKD.
With plastic fiber core; Outer insulation: black polyethylene. Bending radius: above 50 mm. Diameter of the fiber core/insulation 0.98/1.0 mm. Type of fiber: layer indexed. Cable weight type OKE/OKD: 3.8/7.6 kg/km. Structure: single-cable (OKE) and duplex cable (OKD). Attenuation at 660 nm typical/maximum: 190/220 dB/km, at 665 nm typical/maximum: 220/240 dB/km. Tensile strength: 100 N. Outer diameter type OKE/OKD: 2.2/2.2 x 4.3 mm. Ambient temperature: –30 to +80 °C.
Type: OKD 1000–B
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PE | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85447000 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
