2-LIYCY TP 4X2X0,14 GR | Data Cables
PVC data cable, 8-wire, 0.14 mm², gray, 2-LIYCY TP 4X2X0,14 GR
Unit Price (€ / mtr.)
2.9988 € *
Available: 33 mtr.
Next delivery: 100 mtr. on 2025-11-27
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9988 €
10 mtr.
2.7489 €
100 mtr.
2.3919 €
500 mtr.
2.1420 €
1000 mtr.
1.8802 €
*incl. VAT plus shipping costs
Subject to prior sale

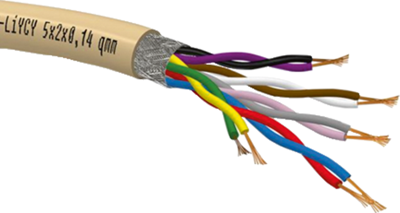

PVC control cables, shielded, twisted-pair, type 2-LiYCY (TP).
Cross-section 0.14 mm².
Stranded wire structure 18 x 0.10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Number of cores | 8 | |
| Colour | gray | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable cross-section | 0.14 mm² | |
| Core insulation material | PVC | |
| Version | data cable | |
| Material | PVC | |
| Outer diameter | 6.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
