LIYY-OZ 02X1,00 GRAU | Control Cables

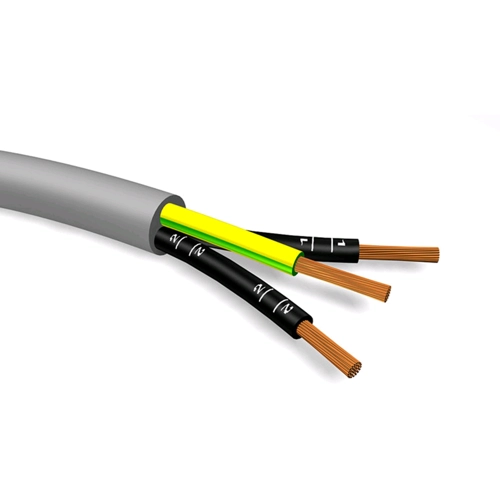

PVC control line LiYY-OZ 2 x 1.0 mm², AWG 18, unshielded, gray, LIYY-OZ 02X1,00 GRAU
Unit Price (€ / mtr.)
1.1305 € *
Available: 35 mtr.
Next delivery: 100 mtr. on 2025-07-02
Total Price:
11.31 € *
Price list
Quantity
Price per unit*
10 mtr.
1.1305 €
100 mtr.
0.9163 €
200 mtr.
0.8449 €
1000 mtr.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC control cables, non-shielded, with number coding, type LiYY-JZ/OZ.
Flexible
Cross-section 1.0 mm².
Technical specifications
| Colour | gray | |
| Number of cores | 2 | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | unshielded | |
| Outer diameter | 5.8 mm | |
| Test voltage | 2.5 kV | |
| AWG cross-section | AWG 18 | |
| Core insulation material | PVC | |
| Cable material | copper, bright | |
| Core colour sequence | black | |
| Rated voltage | 500 V | |
| Temperature range (active) | -5 °C to 70 °C | |
| Material | PVC | |
| Version | control line | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
