LIYY 04X0,75 GRAU | Control Cables

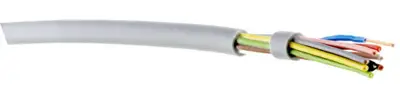

PVC control line LiYY 4 x 0.75 mm², unshielded, gray, LIYY 04X0,75 GRAU
Unit Price (€ / mtr.)
1.7612 € *
Available: 89 mtr.
Next delivery: 50 mtr. on 2025-11-27
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7612 €
10 mtr.
1.4875 €
100 mtr.
1.3804 €
500 mtr.
1.3328 €
1000 mtr.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
Cross-section 0.75 mm² (24 x 0.2 mm).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Number of cores | 4 | |
| Colour | gray | |
| Core colour sequence | DIN 47100 | |
| Test voltage | 2 kV | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable cross-section | 0.75 mm² | |
| Core insulation material | PVC | |
| Product type | control line | |
| Shielding | unshielded | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Outer diameter | 6.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | BE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
