LIYY 02X0,50 GRAU | Control Cables

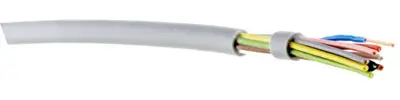

PVC control line LiYY 2 x 0.5 mm², unshielded, gray, LIYY 02X0,50 GRAU
Unit Price (€ / mtr.)
0.6902 € *
Available: 1,578 mtr.
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 mtr.
0.6902 €
10 mtr.
0.5831 €
100 mtr.
0.5474 €
500 mtr.
0.4879 €
1000 mtr.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC control cables, non-shielded, type LiYY.
Bright stranded copper wire
Cross-section 0.5 mm² (16 x 0.2 mm).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Rated voltage | 250 V | |
| Core colour sequence | DIN 47100 | |
| Cable material | copper, bright | |
| Test voltage | 1.5 kV | |
| Product type | control line | |
| Temperature range (active) | -5 °C to 70 °C | |
| Number of cores | 2 | |
| Core insulation material | PVC | |
| Shielding | unshielded | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Colour | gray | |
| Outer diameter | 5 mm | |
| Cable cross-section | 0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
