LIYY 02X0,34 GRAU | Control Cables
PVC control line LiYY 2 x 0.34 mm², unshielded, gray, LIYY 02X0,34 GRAU
Unit Price (€ / mtr.)
0.6783 € *
Available: 300 mtr.
Next delivery: 500 mtr. on 2025-07-16
Total Price:
0.68 € *
Price list
Quantity
Price per unit*
1 mtr.
0.6783 €
10 mtr.
0.5950 €
100 mtr.
0.5474 €
500 mtr.
0.4879 €
1000 mtr.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

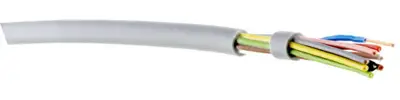

PVC control cables, non-shielded, type LiYY.
Bright stranded copper wire
Cross-section 0.34 mm² (7 x 0.25 mm).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 1.5 kV | |
| Core colour sequence | DIN 47100 | |
| Rated voltage | 250 V | |
| Cable material | copper, bright | |
| Version | control line | |
| Material | PVC | |
| Colour | gray | |
| Outer diameter | 4.9 mm | |
| Cable cross-section | 0.34 mm² | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | unshielded | |
| Number of cores | 2 | |
| Core insulation material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
