LIYCY 14X0,34 GRAU | Control Cables

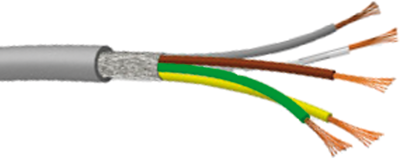

PVC control line LiYCY 14 x 0.34 mm², shielded, gray, LIYCY 14X0,34 GRAU
Unit Price (€ / mtr.)
2.2015 € *
Available: 395 mtr.
PVC control cables, shielded, type LiYCY.
Conductors with color coded insulation. Twisted in layers. Without color repetition to DIN 47100
Cross-section 0.34 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Test voltage | 2 kV | |
| Core colour sequence | DIN 47100 | |
| Cable cross-section | 0.34 mm² | |
| Outer diameter | 9.2 mm | |
| Version | control line | |
| Material | PVC | |
| Temperature range (active) | -15 °C to 70 °C | |
| Number of cores | 14 | |
| Rated voltage | 250 V | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Core insulation material | PVC | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
