H07BQ-F5G1,5 ORANGE | Control Cables

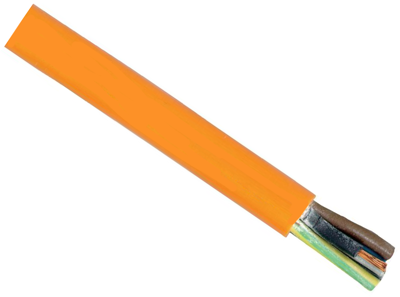

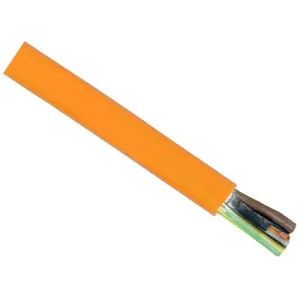

PUR sheathed cable H07BQ-F 5 G 1.5 mm², unshielded, orange, H07BQ-F5G1,5 ORANGE
Unit Price (€ / mtr.)
3.9151 € *
Available: 166 mtr.
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 mtr.
3.9151 €
10 mtr.
3.4510 €
50 mtr.
3.0226 €
100 mtr.
2.9036 €
500 mtr.
2.7132 €
*incl. VAT plus shipping costs
Subject to prior sale
PUR cables, type H07BQ-F.
Silicon-free, resistant to microbes, high abrasive and cutting strength, resistant to acids, caustic solutions, solvents etc
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.5 mm² | |
| Material | PUR | |
| Product type | sheathed cable | |
| Core insulation material | rubber | |
| Test voltage | 3 kV | |
| Shielding | unshielded | |
| Conductor category | CL.5 = fine stranded | |
| Colour | orange | |
| Rated voltage | 750 V | |
| Temperature range (active) | -40 °C to 80 °C | |
| Outer diameter | 9 mm | |
| Protective conductor available | Yes | |
| Rated voltage U0 | 450 V | |
| Cable material | copper, bright | |
| Number of cores | 5 | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Core colour sequence | VDE 0293-308 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
