H05RR-F 5G2,50 SCHWARZ | Control Cables

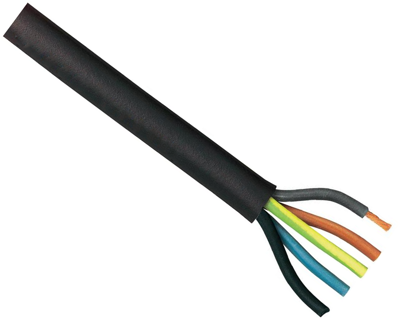

Rubber control line H05RR-F 5 G 2.5 mm², unshielded, black, H05RR-F 5G2,50 SCHWARZ
Unit Price (€ / mtr.)
5.7477 € *
Available: 10 mtr.
Total Price:
5.75 € *
Price list
Quantity
Price per unit*
1 mtr.
5.7477 €
10 mtr.
5.0575 €
50 mtr.
4.4387 €
100 mtr.
4.2721 €
500 mtr.
3.9151 €
*incl. VAT plus shipping costs
Subject to prior sale
Rubber-sheathed cables, type H05RR-F.
With rubber outer insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | rubber | |
| Temperature range (active) | -25 °C to 60 °C | |
| Test voltage | 2 kV | |
| Colour | black | |
| Number of cores | 5 | |
| Shielding | unshielded | |
| Outer diameter | 13 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 60 °C | |
| Material | rubber | |
| Rated voltage U0 | 300 V | |
| Protective conductor available | Yes | |
| Rated voltage | 500 V | |
| Core colour sequence | VDE 0293-308 | |
| Product type | control line | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 50 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
