TVR-7021 | Coaxial Relays
RF relays, 1 Form C (NO/NC), 75 Ω, 100 MHz, 10 mA, 24 V (DC), TVR-7021
Order No.: 27G684
EAN: 4099889414219
MPN:
TVR-7021
Unit Price (€ / pc.)
267.8928 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
267.89 € *
Price list
Quantity
Price per unit*
1 pcs.
267.8928 €
5 pcs.
241.1059 €
10 pcs.
226.8140 €
*incl. VAT plus shipping costs
Subject to prior sale
RF CO relays, type TVR.

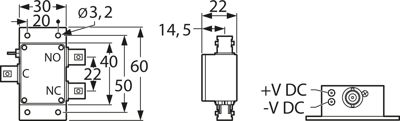

With three BNC jacks, high insulation, low forward losses, RF-proof aluminum case; Frequency range: DC to 100 MHz. Response time: 15 ms. Insulation: 70 dB. Insertion loss: 0.2 dB, VSWR at 100 MHz: 1.2 : 1.
Characteristic wave impedance 75 ohm.
Technical attributes (type, supply voltage, current consumption): TVR 7021, 24 VDC, 10 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Standing wave ratio | max 1.2 VSWR | |
| Contact type | 1 Form C (NO/NC) | |
| Impedance | 75 Ω | |
| Connection | BNC connector | |
| Rated voltage (DC) | 24 V | |
| Frequency | 100 MHz | |
| Rated current | 10 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364110 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
