MZKV 320351 | Cable Glands

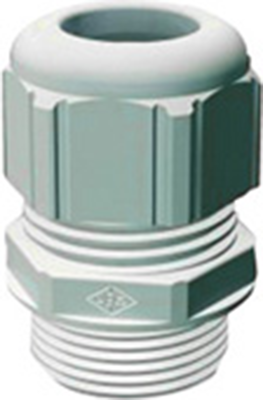

Cable gland, M32, Clamping range 11 to 21 mm, IP68, light gray, MZKV 320351
No longer in assortment
Unit Price (€ / pc.)
1.5113 € *
Available: 92 pcs.
Total Price:
15.11 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5113 €
50 pcs.
1.3328 €
250 pcs.
1.1543 €
1000 pcs.
1.0115 €
2500 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
Metric cable glands series EUROFIX, type Cena MZKV.
Material: PA 6.6. Sealing ring: Neoprene. Operating temperatures: –25 to +100 °C. Degree of protection IP 68 (5 bar, tested to DIN EN 50262). Certifications: VDE/UR for types 120.., 160.., VDE/UL/CSA for types 200.., 210.., 250.., 320.. and 400... Thread length TL: M 12/M 16 8.0 mm, M 20 9.0 mm, M 25 to M 40 11 mm.
Light-gray.

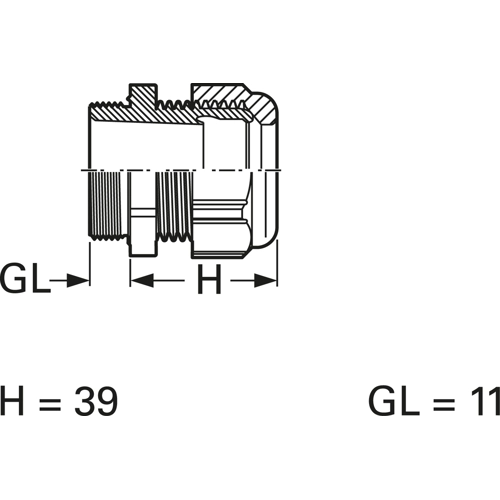

Technical attributes (type, thread, clamping range, dimension H): 320351, M 32, 11 to 21 mm, H 39 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. clamping range | 11 mm | |
| max. operating temperature | 100 °C | |
| Material | PA | |
| min. operating temperature | -25 °C | |
| Colour | light gray | |
| Thread size | M32 | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 21 mm | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
